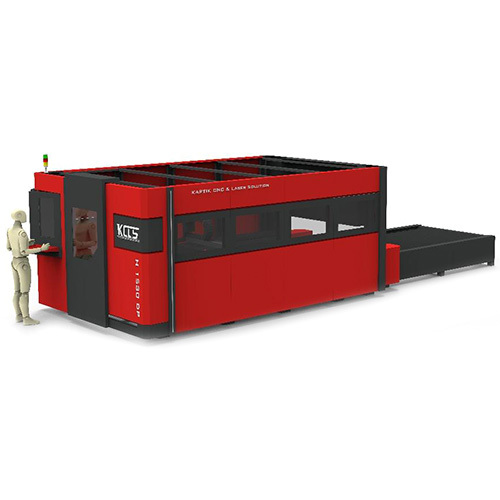

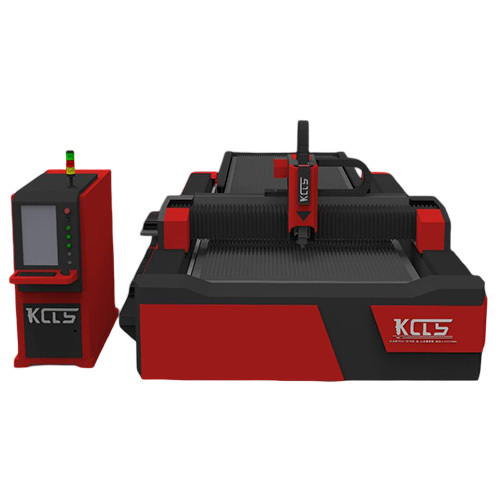

Fiber Laser Cutting Machine

Name: Fiber Laser Cutting Machine
Brand: KARTIK CNC AND LASER SOLUTION
Price: 2500000.0 INR
Availability: InStock

Price 2500000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Fiber Laser Cutting Machine Specification

Technology
Raycus / IPG / MAX Fiber Laser Technology

Working Area
1500 mm x 3000 mm Square Millimeter (mm2)

Power
1000W / 1500W / 2000W / 3000W / 4000W / 6000W optional Watt (w)

Usage & Applications
Metal Sheet Cutting, Engineering Components, Fabrication, Industrial Manufacturing, Automotive Parts

Phase
3 Phase

Product Type
Laser Cutting Machine

Laser Type
Fiber Laser

Material
Metal

Cutting Thickness
0.5 mm - 25 mm (Depends on material and laser power) Millimeter (mm)

Cutting Area
1500 mm x 3000 mm (customizable) Square Millimeter (mm2)

Cutting Speed
0 - 60 m/min (depending on material and power) m/m

CNC Or Not
CNC

Computerized
Yes

Automatic Grade
Automatic

Cooling Mode
Water Cooling

Control Software
WEIHONG

Graphic Format Supported
Other

Control System
PLC Control

Voltage
380V / 50Hz / 3 Phase Volt (v)

Weight (kg)
3200 kg Kilograms (kg)

Dimension (L*W*H)
4600 mm x 2300 mm x 1700 mm Millimeter (mm)

Capacity
High Production Capacity Pcs/hr

Feature
Simple Control, Lower Energy Consumption, High Performance, ECO Friendly

Color
Other

Warranty
1

Laser Head Brand
RayTools / Precitec / WSX (optional)

Laser Wavelength
1070 nm

Table Structure
Exchange Platform or Single Table (optional)

Positioning Accuracy
0.03 mm

Machine Structure
Heavy-duty Welded Steel Frame

Focus Mode
Automatic Focusing

Compatible Operating Systems
Windows

Max Acceleration
1.2G

Environment Humidity
95% (non-condensing)

Operator Interface
Touch Screen

Worktable Max Load
800 kg

Drive System
Servo Motor System

Assist Gas
Oxygen, Nitrogen, Air

Safety Features
Enclosed Protection, Emergency Stop, Smoke Filtration System

Operating Temperature
0C - 40C

Transmission Mode
Imported Rack & Pinion, Dual Drive

Repeat Positioning Accuracy
0.02 mm

Fiber Laser Cutting Machine Trade Information

Minimum Order Quantity
1 Unit

FOB Port
YES

Supply Ability
10 Units Per Month

Delivery Time
1 Years

Sample Available
No

Sample Policy
Free samples are available

Main Export Market(s)
Asia

Main Domestic Market
All India

About Fiber Laser Cutting Machine

Professional Laser Cutting Machine Description

A Fiber Laser Cutting Machine is a high-performance CNC machine designed for fast, accurate, and efficient cutting of various metal sheets and plates. Equipped with advanced fiber laser technology, it delivers exceptional cutting quality with smooth edges, high precision, and minimal material wastage. The machine is ideal for industries that require consistent production, superior finish, and reliable performance.

Built with a robust machine structure and intelligent CNC control system, the laser cutting machine ensures stable operation even during continuous production. Its high-speed motion system, precision linear guide rails, and servo-driven mechanics provide excellent cutting accuracy while maintaining productivity. The machine is capable of processing complex shapes, intricate patterns, and detailed designs with ease, making it suitable for both custom fabrication and mass production.

The fiber laser source offers high energy efficiency, lower operating costs, and a longer service life compared to conventional cutting technologies. With non-contact cutting technology, the machine minimizes mechanical stress on the material, resulting in clean, burr-free edges and reducing the need for secondary finishing operations. This not only improves product quality but also saves time and labor costs.

The machine supports cutting of a wide range of metals, including Mild Steel (MS), Stainless Steel (SS), Carbon Steel, Aluminum, Brass, Copper, and Galvanized Steel, making it a versatile solution for various industrial applications. Depending on the laser power selected, it can efficiently process thin sheets as well as thicker metal plates while maintaining excellent cutting quality.

Designed with user convenience in mind, the machine features an intuitive control interface, automatic height adjustment, intelligent nesting software, and real-time monitoring functions. These features help maximize material utilization, improve production efficiency, and reduce operating errors. The integrated safety system ensures safe operation while maintaining high productivity.

The Fiber Laser Cutting Machine is widely used across industries such as sheet metal fabrication, automotive manufacturing, electrical panel production, agricultural equipment, construction machinery, kitchen equipment, elevators, furniture manufacturing, decorative metal work, signage, engineering workshops, and precision component manufacturing.

By combining advanced laser technology, high-speed performance, exceptional accuracy, and low maintenance requirements, the Fiber Laser Cutting Machine provides manufacturers with a cost-effective, reliable, and future-ready solution for modern metal cutting applications. It enhances productivity, reduces production costs, improves product quality, and delivers consistent results, making it an ideal investment for businesses seeking precision, efficiency, and long-term performance.

FAQ's of Fiber Laser Cutting Machine:

Q: How does the Fiber Laser Cutting Machine ensure high precision cuts?

A: The machine achieves high-precision cuts with a stellar positioning accuracy of 0.03 mm and repeat positioning of 0.02 mm, thanks to its CNC control system, advanced servo motors, and imported rack & pinion transmission combined with automatic focusing.

Q: What materials can this laser cutting machine process?

A: This versatile machine can process mild steel, stainless steel, aluminum, copper, brass, and various industrial alloys, efficiently cutting sheet materials across a range of thicknesses from 0.5 mm to 25 mm, depending on laser power and material.

Q: When is the typical machine delivery time after order placement?

A: Delivery time varies based on configuration and order size, but typically, the Fiber Laser Cutting Machine is delivered and installed within a few weeks after order confirmation and payment processing.

Q: Where can this machine be effectively utilized?

A: This machine is ideal for manufacturing hubs, fabrication units, automotive part production, and engineering workshops where stellar precision and high-capacity fabrication are required.

Q: What safety features are integrated into the Fiber Laser Cutting Machine?

A: For operator safety, the machine comes with enclosed protection, an emergency stop mechanism, and a smoke filtration system, ensuring a safe and clean working environment during high-speed operations.

Q: How does the payment process work for this machine?

A: You can structure your expenditure through flexible payment terms, with options including advance payments and balanced settlements as per contract, ensuring the investment aligns with your organization's budgeting.
